Setup A New Account - Microsoft Outlook 2000 - Corporate or Workgroup

Open Microsoft Outlook.

At this point, Outlook 2000 will open the setup wizard to help you setup your email account.

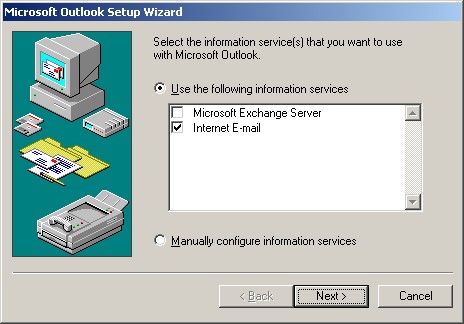

Put a checkmark in 'Internet E-mail' and click 'Next'.

Internet E-Mail

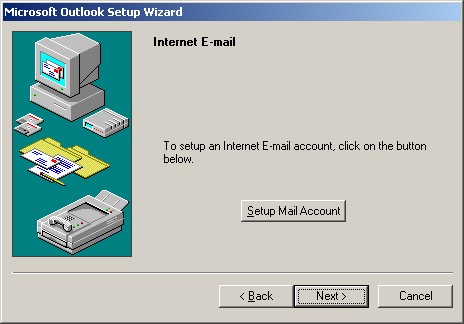

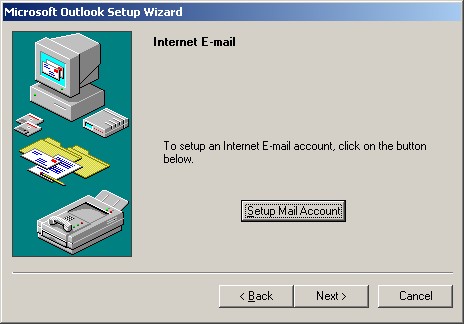

Click the 'Setup Mail Account' button.

The Mail account properties box will show up.

Make sure your 'Mail Account', Name and 'E-mail address' fields are filled out like they are listed in this screen.

Please note: The 'Reply address' is not needed because if it is not specified, the reply will go to the 'E-Mail address' listed.

Click on the 'Servers' tab at the top.

Make sure that your settings look like the settings shown in this screenshot.

The following are the most important:

  • 'Incoming mail (POP3)':
    mail.domain.tld (eg.
  • 'Outgoing mail (SMTP)':
    mail.domain.tld (eg.
  • 'Account name':
    email.domain.tld (eg. NOT
  • 'Password':
    The one you specified in your EasyMail Setup (8 characters maximum).
  • Outgoing Mail Server:
    Put a checkmark beside 'My server requires authentication'

Click on the 'Settings...' button to the right.

Make sure the dot is in the first option, 'Use same settings as my incoming mail server' and click the 'OK' button.

Click on the 'Advanced' tab at the top.

Make sure that your settings look like the settings shown in this screenshot.

Click the 'OK' button and then the 'Next' button.

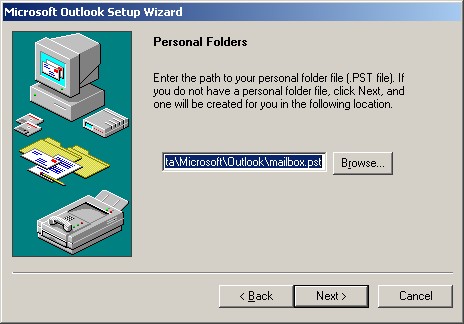

Personal Folders

Leave the default path to the Personal Folders mailbox file and click the 'Next' button.

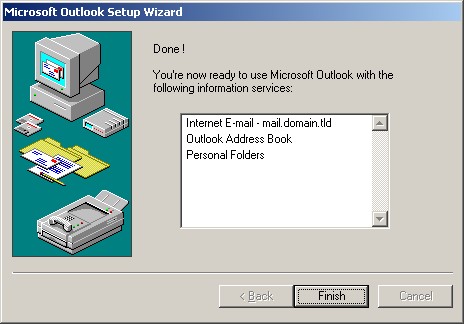

Click the 'Finish' button to finish setting up your account. At this time, Outlook will build the Outlook Toolbar, and then open up your Inbox. You may now try to send and receive email.


If you can receive email however you cannot send email and the settings are exactly as shown above, change your outgoing mail (SMTP) port from the default of 25 to 1025.

To do this:

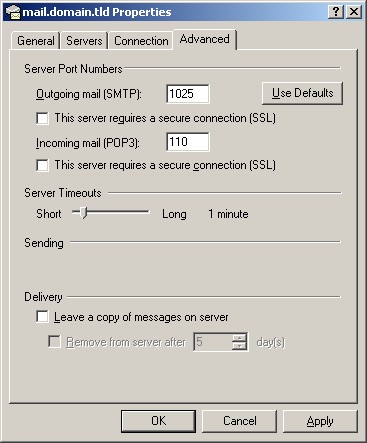

Click on 'Tools' > 'Services'> Highlight the problematic account 'Internet E-mail - mail.domain.tld' > 'Properties' button > 'Advanced' tab.

Change the 'Server Port Numbers' - 'Outgoing mail (SMTP)' from 25 to 1025.

Background Reasoning:

In order to combat spam, some Internet Service Providers (ISPs) block traffic to external servers on port 25 so that customers using that ISP can only use the ISP's mail server. If that customer is going to spam, the idea is that they must use the ISP's mail server to spam and therefore be caught very quickly, and handled accordingly. Realizing that many ISP's mail servers have a more restrictive options (ie. not being able to send to more than 100 people at a time) as they are usually residential mail servers, we have opened an alternative port to allow you to send mail using our mail servers, one that the ISPs do not block. That port is SMTP port 1025.
